- Place of Origin: CHINA
- Brand Name: Leapion

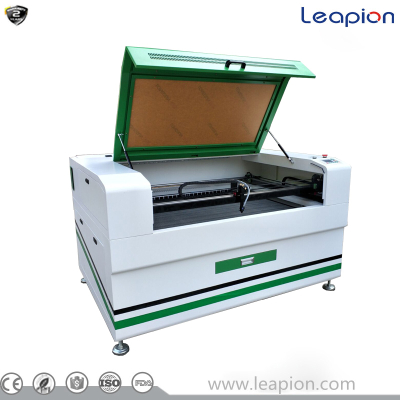

- Model Number: LP-1390
- Weight: 400.000 kg
MAIN FEATURE
1. Drive system with high precision linear guide and slide block, high precision, wear resistance, small resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.
2. Red Cross accurate positioning, convenient and quick in finding engraving and cutting position.
3. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect.
4. Equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.
- Place of Origin: CHINA
- Brand Name: Leapion
- Model Number: LP-1390
- Weight: 400.000 kg
TECHNICAL PARAMETERS
ITEM | LP-1390 | LP-1610 | LP-1318 | LP-1325 |
Working area | 1300*900MM | 1600*1000MM | 1300*1800MM | 1300*2500MM |
Laser power | 80w/100w/130w/150w | |||
Laser type | CO2 sealed laser tube,10.6μm | |||
Cooling type | Water cooling | |||
Engraving speed | 0-60000mm/min | |||
Cutting speed | 0-40000mm/min | |||
Laser output control | 0-100%set by software | |||
Min.engraving size | Chinese:2.0mm*2.0mm,English letter:1.0mm*1.0mm | |||
Highest scanning precision | 4000DPI | |||
Locating accuracy | ≤ 0.01mm | |||
Controlling software | RDCAM 6442GControl System | |||
Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc | |||
Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | |||
Color separation | Yes | |||
Drive system | High-precision 3-phase stepper motor | |||
Auxiliary equipments | Exhaust fan and air exhaust pipe | |||
Power supply | AC110V/220V 10%,50HZ/60HZ | |||
Working environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | |||
APPLICATION
Applicable industries: mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Processing materials: materials such as acrylic, wood planks (light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc..
