- Size: 1.2
- Place of Origin: China
- Brand Name: Leapion
- Model Number: LP20FI
- Weight: 170.000 kg
Product Description:
• Industrial machine type, popular layout, excellent effect of dust proof.
• All-in–one design of electric cabinet and working table.
• High space between lifting table and working table, especially used for marking on small size work piece.
• Packing size: 940*790*1550mm Net weight: 120KGS Gross weight: 170KGS
Applications:
• Electrical Engineering and Electrical part and component
• Telecommunication product and Mobile communications(cover,battery,keyboard)
• Jewelry,eyeglass,clocks and craft
• Building materials,PVC pipe
• Car motor car spare part
• Instrument and meters and cutting tool
• plastic case
• aviation and aerospace,
• military product,
• hardware fitting and accessory
• sanitary appliance
• stationery,
• food and beverage
• medicine package andmedical instrument
• solar Pv industry: silicon wafer
• other: rubber epoxy resin ABS Printing ink Coating film

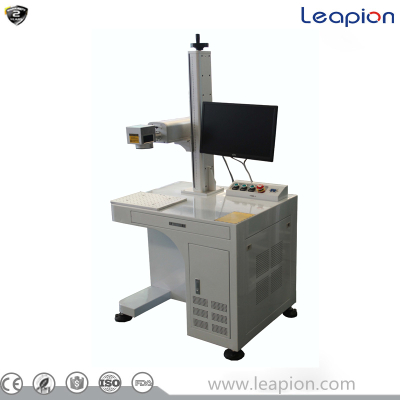

• Desktop Fiber Laser Marking Machine
- Size: 1.2
- Place of Origin: China
- Brand Name: Leapion
- Model Number: LP20FI
- Weight: 170.000 kg
Specification:
| Type specification | LP-F10 | LP-F20 | LP-F30 | LP-F50 |
| Wave length of laser | 1064nm | |||
| Laser repetition frequency | 20kHz~80kHz | |||
| Laser power | 10W | 20W | 30W | 50W |
| Marking scope | 50*50/70*70 /100*100 /200*200mm/300*300mm | |||
| Laser sources | Fiber laser Raycus/ IPG | |||
| Laser Head | High speed scanning head | |||
| The minimum focus facula diameter | 20μm | |||
| Minimal character | 0.01mm | |||
| Marking speed | ≤7000mm/s | |||
